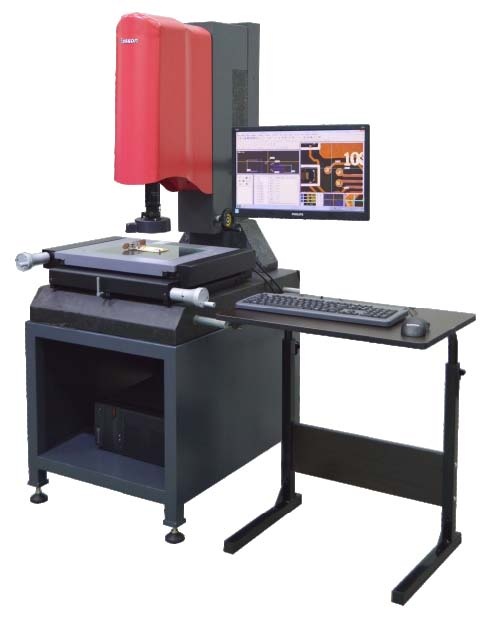

C Series Vision Measurement Machine

Online Inquiry

Easson C series vision measurement machine has a user-friendly operation interface and powerful software.The instrument is with a high quality camera and high precision optical lens,in addition the high precision working table and optical scales,can ensure a precision and clear image for measuring and inspection.The magnification can be 25X- 145X, together with the powerful software, the measuring efficiency will be much higher than a normal profile projector. The high quality camera ensures a clearing image for different color and different material work piece,so you can get an outstanding outcome even in the curve and tiny work piece measuring.

Model	C-2515	C-3020	C-4030
X,Y,Z measurement travel	250x150x150 (mm)	300x200x200 (mm)	400x300x250 (mm)
Overall dimensions	100x60x140 (cm)	120x72x160 (cm)	120x72x160 (cm)
Machine Weight	170 kg	280 kg	410 kg
Repeatability	2 micron
Max table load	25 kg
Operation mode	Manual, High speed and trusty USB connect with computer
Resolution	0.5 μm
X,Y measurement precision	(3+ L/200) micron
Light Source system	Software controlled adjustable 8 zone surface light and straight adjustable contour light
Structure	Granite base and mast
Lens	Ultra-low distortion, can zoom in and zoom out
Magnification	Optical enlarging rate 0.75-4.5x, image enlarging rate 25-125x
Vision system	1/3” High resolution CCD lens
